Maxilift 50 Series

50 SERIES

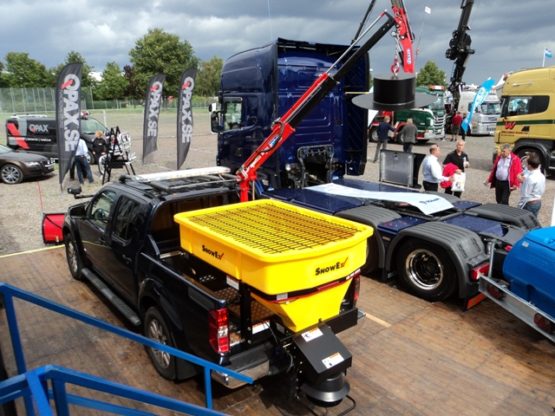

ANT Minicrane: One model for a wide range of versions.

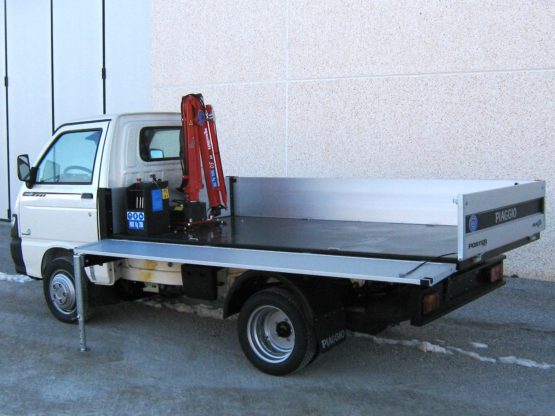

For any kind of vehicle, included pick-up and small trailers.
Easy to assemble and remove.

Among the several available versions you will find the most suitable to your vehicle and set-up requirements

Completely manual (no power required)
Electro-hydraulic by simple connections to the battery
For P.T.O. (Power Take Off) equipped vehicles
With rotation by lever or hydraulic
Hydraulic or by hand pump load lifting
Extensions: manual or hydraulic

Options:

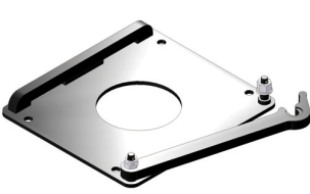

Counterflange
Quick fastening kit for comfortable fixing and removal
Mechanic stabilizer
Backward attachment kit

FULL CAPACITY

50.2M

Details

Crane rating: ft lb 3,7
Standard outreach: ft 8′ 1″
Nr. of extensions (h=hydraulic – m=manual): 2 M
Slewing: By lever
Load lifting: Hydraulic by hand pump
Basic crane weight: lb 163
Crane weight with stabilizer kit: lb 206
Voltage rating: –

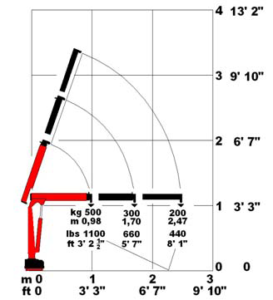

Technical Design

50.2H

Details

Crane rating: ft lb 3,7
Standard outreach: ft 8′ 1″
Nr. of extensions (h=hydraulic – m=manual): 1 H + 1 M
Slewing: By lever
Load lifting: Hydraulic by hand pump
Basic crane weight: lb 182
Crane weight with stabilizer kit: lb 226
Voltage rating: –

Technical Design

50.2ERS

Details

Crane rating: ft lb 3,7
Standard outreach: ft 8′ 1″
Nr. of extensions (h=hydraulic – m=manual): 2 H
Slewing: Electro-hydraulic
Load lifting: Electro-hydraulic
Basic crane weight: lb 200
Crane weight with stabilizer kit: lb 231
Voltage rating: 12 V
